JVX Air Shifters


 J V X  pioneered the first three speed (shifts from 1st to 2nd and 2nd to 3rd) air shifters. With over eight (8) seasons under their belt the first experimental models are still in service having never missed a shift. Properly installed and maintained, you can expect the same quality service. As with all J V X products, air shifter components are machined from the finest materials in the industry.

 J V X  AIR SHIFTER

 For three (3) speed forward pattern transmissions . . . . . . . . 79550 ------ $395.00

 For three (3) speed reverse pattern transmissions. . . . . . . . .79580 ------ $395.00

 ( Fits JVX shifter #79501, #79503, Cheetah SCS, Art Carr, Winters, and Fairbanks )

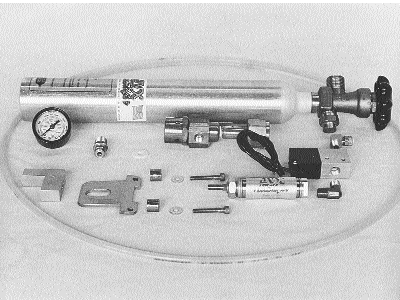

 AIR SHIFTER COMPONENT PARTS ( #79550 )

 Ten ounce (10 oz.) aluminum bottle (2 in. x 13.09 in.) . . . . . . 79551 ------ $60.00

 CO2 valve (off-on valve) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79552 ------ n/a

 Regulator (pre set 100 psi. w/nut & washer) . . . . . . . . . . . . . . 79553 ------ $59.00

 Regulator (two-stage, adjustable, w/gauges) . . . . . . . . . . . . . .79569 ------ $69.00

 Gauge (shows remaining pressure in bottle) . . . . . . . . . . . . . .79554 ------ $12.00

 Brass fitting (1/4 pipe x 1/4 ferrule 180 deg) . . . . . . . . . . . . . . 79555 ------ $5.10

 Pressure hose (1/4 dia. by 6 ft. Long) . . . . . . . . . . . . . . . . . . . .79556 ------ $5.56

 Brass fitting (1/8 pipe x 1/4 ferrule 90 deg) . . . . . . . . . . . . . . . 79557 ------ $5.10

 Solenoid Valve (12 volt DC, 4 watt, 125 psi) . . . . . . . . . . . . . .79558 ------ $54.00

 Brass fitting (1/8 pipe x 1/8 pipe 90 deg) . . . . . . . . . . . . . . . . .79559 ------ $5.56

 Air Cylinder, w/nut (.5 x .75 125 psi) . . . . . . . . . . . . . . . . . . . . . 79560 ------ $44.00

 Mounting bracket (shifter) w/spacers and screws . . . . . . . . . . 79561 ------ $40.00

 Index head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79562 ------ $40.00

 SPLIT SHIFT CONTROL BOX

 This box allows the user to select the same or different RPM shift points for the 1-2 shift and the 2-3 shift. A special delay circuit is incorporated to allow the 2-3 shift even if no RPM drop is seen after the 1-2 shift. Complete with 125 psi solenoid. Two (2) low RPM test chips are included. See page 21 for additional chips.

 Split Shift Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79568 ------ $285.00
