Aluminum Drums



alumdrumpic

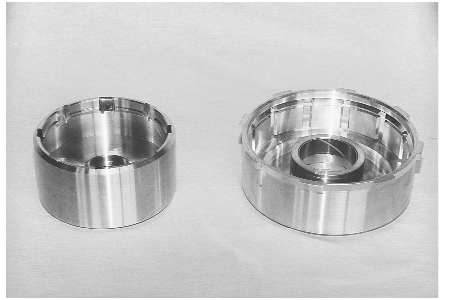

 These drums are manufactured from 7075 aircraft quality aluminum on CNC machinery and heat treated to T-6 standards. They are both light weight and durable. With this combination you may cut as much as .05 to .08 seconds off your elapse time (ET) and increase your safety margin as well.

 727 - A518

 Front Clutch Drum (High-Reverse) . . . . . . . . . 72300 -------- $495.00

 Rear Clutch Drum (Forward) . . . . . . . . . . . . . . 72301 -------- $425.00

 Low Reverse Drum - 727 . . . . . . . . . . . . . . . . . 72302 -------- $475.00

 Low Reverse Drum - A518 . . . . . . . . . . . . . . . .72303 -------- $525.00

 904 - 999 - A500

 Front Clutch Drum (High-Reverse) . . . . . . . . . .90300 -------- $495.00

 Rear Clutch Drum (Forward) . . . . . . . . . . . . . . .90301 -------- $550.00

 Low Reverse Drum (904-999, 1968-on) . . . . . 90302 -------- n/a

 Low Reverse Drum (A500, 1988-on) . . . . . . . .90303 -------- n/a

 CUT PISTON & CUT PL ATE

 In the 727 transmissions you can add an additional clutch & steel to the front drum (high-reverse) without using thin frictions or sacrificing the proper clutch clearance. In 904 & 999 the cut plate allows additional clutch clearance.

 727 - A518

 Cut Pressure Plate (Front or Rear Drum) . . . . 72500 -------- $55.00

 Cut Piston (Front Drum only). . . . . . . . . . . . . . . 72501 -------- $55.00

 904 - 998 - 999 - A500

 Cut Pressure Plate (Front or Rear Drum) . . . . 90500 -------- $55.00

 STEEL DRUMS

 727-518

 Front Clutch Drum (High-Reverse) . . . . . . . . . . 72310 -------- $695.00
